   Product Show

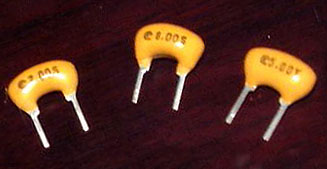

NAME:  ZTA 2.00-8.00 MHZ
SPECIFICATION：
●ELECTRICAL CHARACTERISTICS
Port Number ZTA□.□□MG ZTA□.□□MG ZTA□.□□MG ZTA□.□□MG
Frequency Range(MHz) 2.00to2.99 3.00to3.49 3.50to4.99 5.00to8.00
Frequency Accuracy of 25ºC ±0.5 ±0.5 ±0.5 ±0.5
Stability in Temperature -20ºC to + 80ºC(%) ±0.3 ±0.3 ±0.3 ±0.3
Aging for Ten years(%) ±0.3 ±0.3 ±0.3 ±0.3
Resonant Resistance
(Ω)max.		 80 50 30 30

Withstanding Voltage
(5 Seconds max.)

 100V DC 100V DC 100V DC 100V DC
Insulation Resistance(Ω) 5×108Ω
Minimum
(at 10V DC) 		　5×108Ω
Minimum
(at 10V DC)		 　5×108Ω
Minimum
(at 10V DC)		 　5×108Ω
Minimum
(at 10V DC)

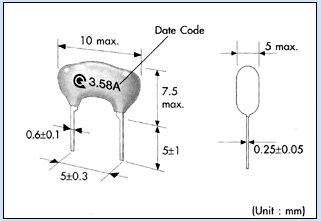

PARAMETER：

●TEST CIRCUIT
PDF FILE ：
