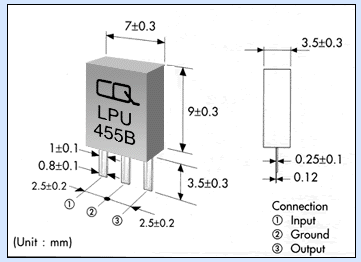

NAME:  LPU□□□B Series / LPA
SPECIFICATION：
●ELECTRICAL CHARACTERISTICS
Part
Number 		Center frequency
(fo)¹		 3dB/6dB
bandwidth²		 Selectivity Insertion
loss
-9KHz off +9KHz off
LPU455B
(Connected with IFT) 		455±2.0KHz 10±3.0KHz 5dB min. 3dB min. 5dB max.
LPA450J 450±3.0KHz 5.5KHz min. 8dB min. 6dB max.
LPA450A 450±1.1KHz ±2.0KHz 6dB min. 6dB max.
LPA450B 450±2.1KHz ±2.0KHz 6dB min. 6dB max.
PARAMETER：

●TEST CIRCUIT

RECOMMENDED IFT SPECIFICATIONS
PDF FILE ：
