NAME:  LTWM455
SPECIFICATION：
ELECTRICAL CHARACTERISTICS
Center
Frequency
(KHz) 		Insertion
loss
(dB)max. 		Passband
Ripple
(dB)max.

6dB
bandwidth
(KHz)min.

50dB
Bandwidth
(KHz)max. 		Stop Band Att.
±100KHz
(dB)min. 		Input/Output
Impedance
(Ω)
LTWM455B 455±2.0 4 2 ±15 ±30 45 1500
LTWM455C 455±2.0 4 2 ±12.5 ±24 45 1500
LTWM455D 455±1.5 4 2 ±10 ±20 45 1500
LTWM455E 455±1.5 6 2 ±7.5 ±15 45 1500
LTWM455F 455±1.5 6 2 ±6 ±12.5 45 2000
LTWM455G 455±1.5 6 2 ±4.5 ±10 45 2000
LTWM455H 455±1.0 6 2 ±3 ±9 55 2000
LTWM455I 455±1.0 6 2 ±2 ±7.5 55 2000
LTWM455HT 455±1.0 6 2 ±3 ±9 60 2000
LTWM455IT 455±1.0 6 2 ±3 ±7.5 60 2000

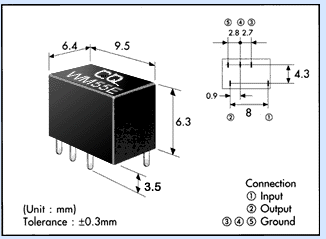

PARAMETER：
MEASURING CIRCUIT
PDF FILE ：
